SMNCM-2E Contactless Smart Card Wire Embedding Machine

Collect
  • DETAILS

SMNCM-2E Contactless Smart Card Wire Embedding Machine




Machine has 9units coil embedding devices, maximum 8*9 format for RFID Contactless Smart Card production. Antenna Embedding Machine adopts the first-class servomotor multi-axial controllers and the first-class 70KHz ultrasonic generator. It features high precision and high stability. The machine has higher productivity based on single worktable with speedy embedding heads. It is one of the fastest antenna embedding machines at present in the world. It's full automatic antenna embedding machine to apply copper wire on plastic sheet.

1. Machine runs stable, wires are well-distributed.

2. Servo motor controls the location.

3. Designed for different plastic sizes and various shapes of antenna.

4. It is easy to load plastic sheet and easy to adjust.

5. PC control with software.

6. Machine has 2 working tables and 9units wire embedding tools, after embedding heads finish antenna embedding on left table sheet, automatic move to right table for continue antenna embedding. At the same time, operator can take away the left table sheet and replace a new sheet. After embedding heads finish wire embedding on right table sheet, it also automatic back to left working table for continue wire embedding. Also we can set machine machine only work for left or right table sheet.


 Embedding Material: PVC, ABS, PET, PETG, Teslin, Polycarbonate or other mixed plastic materials

 Embedding Layout: 2*5, 3*7, 3*8 , 4*8, 5*5, 6*8, 7*8, 6*9, 7*9, 8*9 or other size in your order

 Embedding Copper Wire: 0.1mm-0.15mm

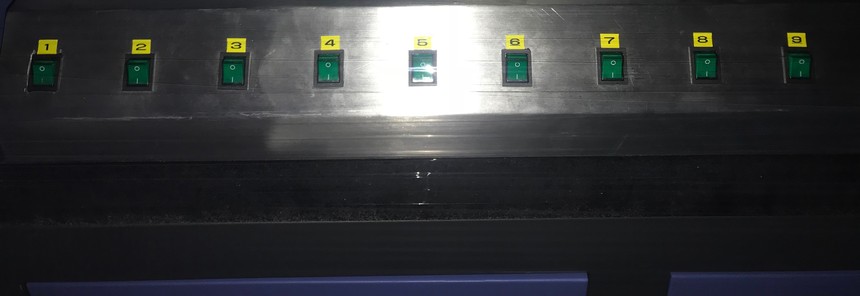

 Embedding Head:     9units

 Working table:    1 working table or 2 working tables or 6 working tables by your order

 Embedding Size: A4, A3, A3+ or A2

 Coiling Space: minimum 0.2mm

 Ultrasonic Generator: 9units    70KHz

 Embedding Efficiency: 2000-6500pcs per hour depends your format and embedding heads quantity

 Air Supply: 0.6MPa       50Liter/minute

 Control Method: PC, Servo System

 Voltage: 220V or 380V  50/60Hz

 Power: 3KW

 Servo Precision: X   and   Y   = 0.0125mm

 Machine size 1900mm*960mm*1700mm   Packing Size: 2000mm*1150mm*1850mm

 Net/Gross Weight: 800KGS/950KGS
