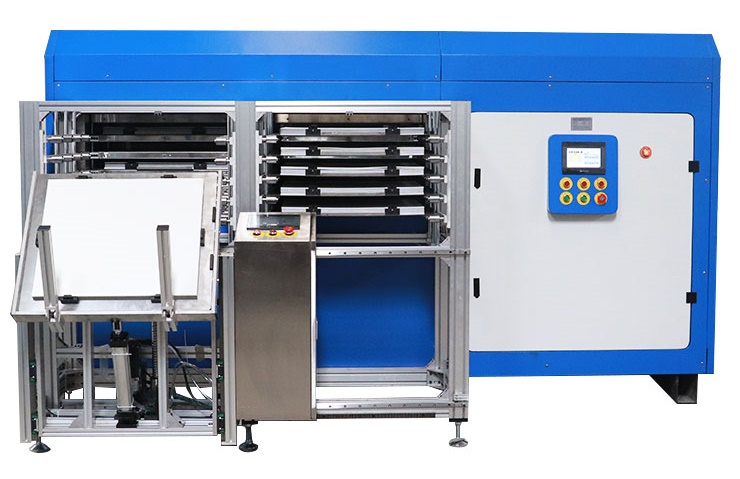

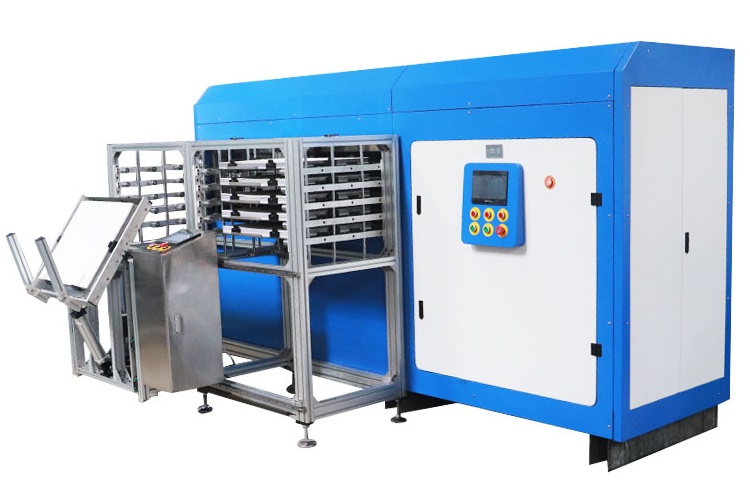

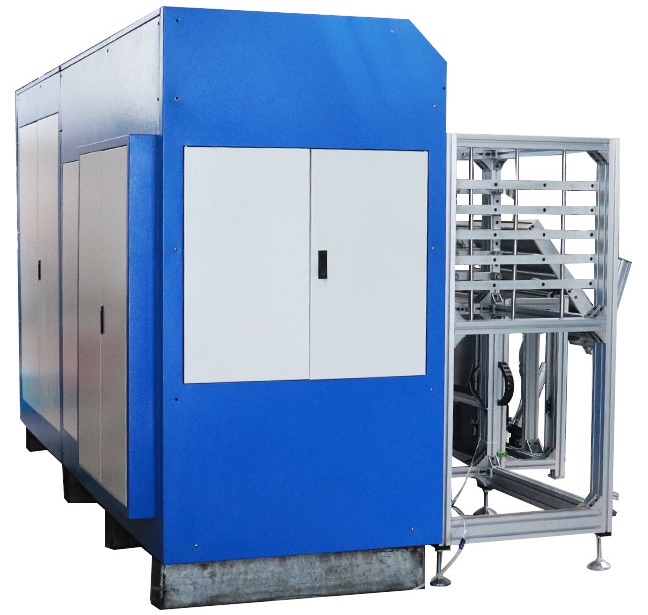

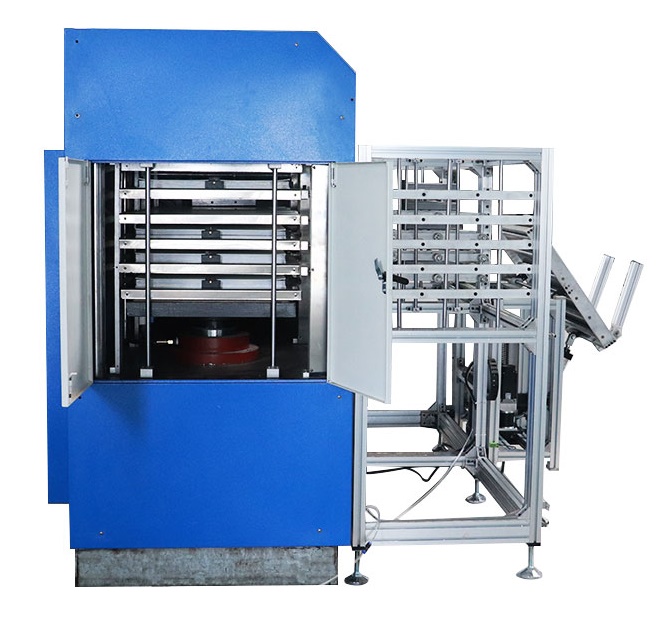

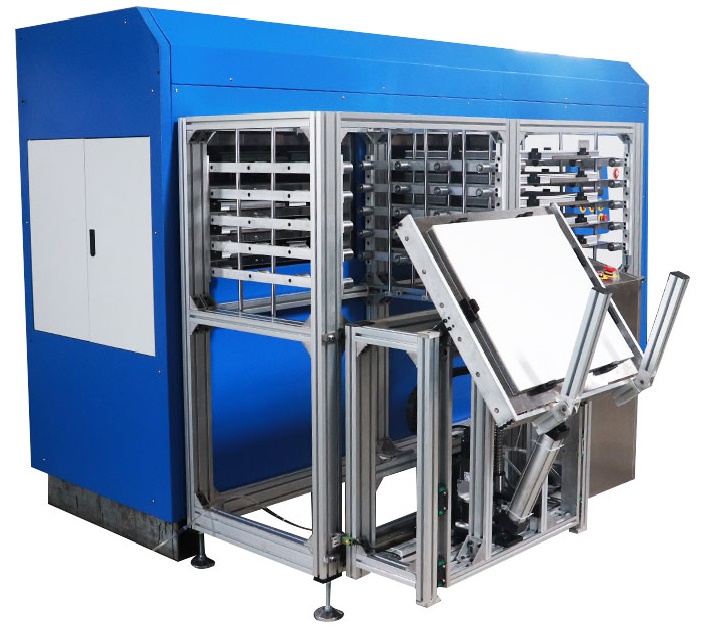

SMCLM-5B-AT Automatic Loading & Transfer Plastic Smart RFID Card Laminator is automatic load trays with materials upto each daylight, automatic transfer trays with materials from hot tower to cold tower, the automatic functions are specially made because of big size materials with trays with plates will be over 60KGS for A2 size, but now even a young girl without strong power can operate machine well. This machine is perfect to make DI card, dual-interface bank card, contactless smart card, ID card, contactless inlay sheet lamination and other simple PVC card production, it's good for all card making factory.

Operation Steps:

1.Just for the first time , two operators need to take tray with materials into the loader.

2.Choose the setting by touch-screen to automatic move up tray with materials to each daylight by servo system.

3.Push trays into hot lamination tower and press "start hot lamination" switch.

4.After hot lamination , hot lamination daylights automatic open and press "transfer" switch, automatic transfer trays from hot lamination daylights to cold lamination daylights, and the automatic transfer module automatic back to origin position.

5.Press "start cold lamination" switch for cold lamination.

6.At the same time laminate another 5 trays for hot lamination.

7. When cold lamination finish, operator take each tray out from cold lamination daylights and get laminated sheets, at the same time put new materials into trays on the loader, no need to take out plates and pad, save time and save labour, no need strong man to do this job.

Configurations:

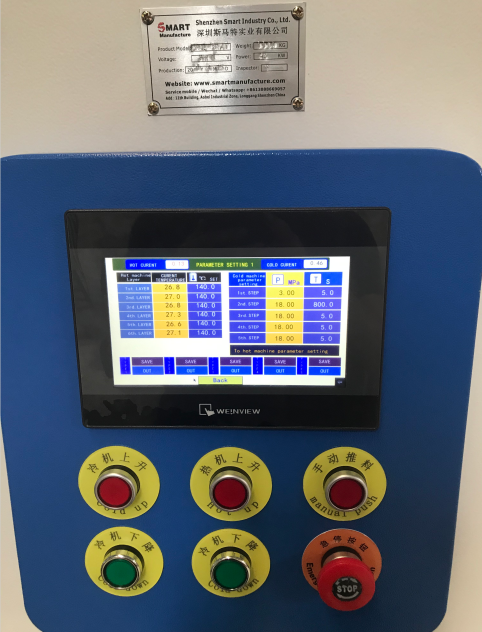

1. Separate two softwares: one software to control trays automatic loading up and down to all lamination daylights, another software to control hot daylights lamination and cold daylights lamination with time & pressure & temperature setting.
2. Separate two oil hydraulic system: hot tower and cold tower are maximum 80Tons pressure and maximum 12 steps pressure for inlay & RFID & dual interface card production.
3. Separate temperature control module: can turn ON / OFF any plate temperature for sample card production, the real temperature and setting temperature difference only less than 5 degrees. Maximum temperature setting can be 400C, perfect for PVC, PET, PETG, Teslin, Polycarbonate, ABS or other materials.
4. Can save the parameters setting and output for different types card production.

Technical Specifications:
Voltage: 380V 50/60Hz
Power: 40KW
Air Supply: 0.6-0.8MPa   6KG per square centimeter   around 20L/minute
Control Method: Omron PLC + Mitsubishi Servo System + Weinview Touch Screen
Lamination Materials Type: PVC, PET, PETG, Teslin, Polycarbonate, ABS or other materials
Lamination Size: Maximum 7*8 format or other format by your order
Temperature Range: maximum 400C
Pressure Range: maximum 80Tons
One Time Pass Rate: 99.9%
Dimensions: 3080mm*2400mm*1620mm
Weight: 3500KGS
