SMDIM-SH2 Dual-Interface Card Super High Speed Wire Embedding Machine

Collect
  • Details

SMDIM-SH2 Dual-Interface Card Super High Speed Wire Embedding Machine is used to embed copper wire by ultrasonic embedding heads. It adopts the first-class servomotor multi-axial controllers and the first-class 70kHz ultrasonic generator. It features high precision and high stability. It’s one of the fastest antenna embedding machines at present in the world.

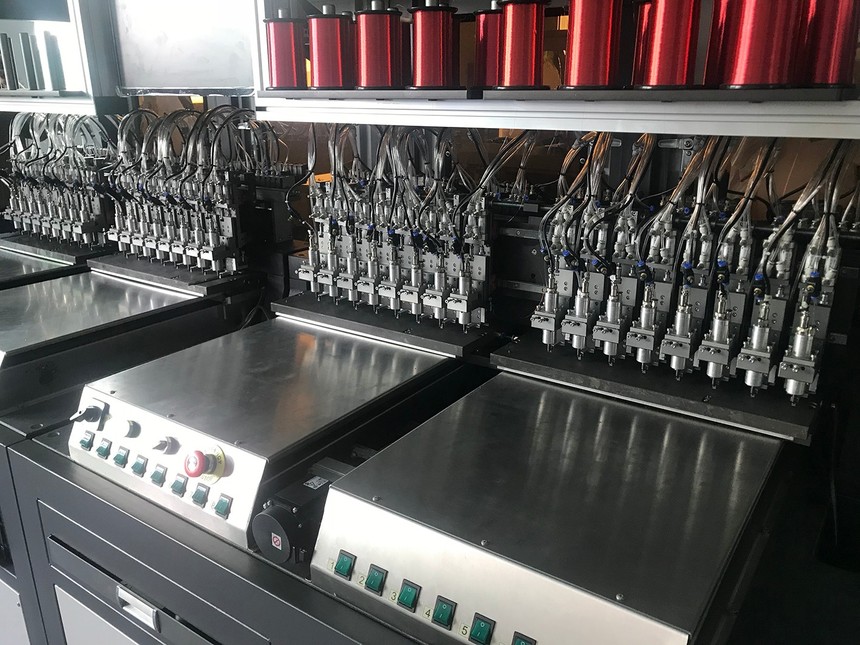

32heads s.jpg

1.Machine runs stable, wires are well-distributed.

2. Servo system controls the wire embedding location.

3. Designed for different plastic sizes and various shapes of antenna, 32units embedding heads and 4 tables for no stop production.

4. PC control with our software, easy to load plastic sheet and easy to adjust.


Embedding Material

PVC, ABS, PET, PETG, Teslin or other mixed plastic materials

Embedding Layout

3*7, 3*8, 3*8, 4*8, 4*9, 5*5,6*8,7*8

Embedding Copper Wire

0.1mm-0.15mm

Embedding Head and Table

32 heads with 4 working tables

Embedding Size

double A3 or A3+ or A2

Coiling Space

minimum 0.2mm

Embedding Efficiency

9000-10000pcs per hour

Air Supply

0.6MPa       55Liter/minute

Control Method

PLC, Touch Screen, Servo System

Voltage and Power

220V     50/60Hz     6KW

Servo Precision

X   and   Y   = 0.0125mm

Packing Size

2200mm*1150mm*1750mm

Net/Gross Weight

1600KGS/1730KGS

Numbers of Operator

1 worker
