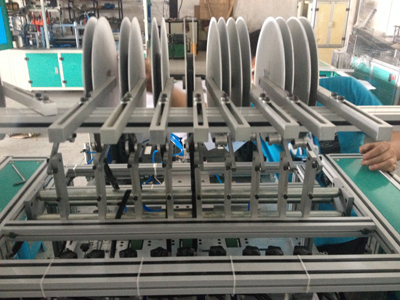

SMMCM-3 Full Automatic Multifunctional Magnetic Stripe Bonding Machine



SMMCM-3 Full Automatic Multifunctional Magnetic Stripe Applying Machine
1.The system is automatically controlled by PLC and operated on touch screen human-machine inter face.
2.Feed sending by driven servo-motor, which controls running speed and the length of the feeding film both speed and length are adjusted.
3.Several groups roller impact the structure, the pressure of the cylinder can be adjusted to insure the covered film is parallel and orderliness.
4.The motivity for the film cutting is driven by cylinder, with simple structure and good working state.
5.The recycling system recycles the magnetic stripe foil automatically.
6.Use barometric pressure spindle material loading and unloading system, it is convenient to load and upload material.
7.Heating temperature controlling methoduse the heater to heat up and the imported thermocouple cooperating with temperature controller to control the temperatureit is easy to set and the temperature controller is precise.
8.The temperature and pressure of each magnetic laying head can be adjusted solely.
9.Use automatic tension control system to send feeds, so that conveying of film can be stable.
10.It realizes the processing of coil film to sheet material or sheet material to sheet material stripe laying.

 Power source 380V or 220V or 110V    50Hz/60Hz
 Available material Hi-Co or Lo-Co different color magnetic stripe
 Air source 6 kg/cO((no water)
 Stripe width different width by adjustment and plate diameter 380mm
 Total power 8.5K
 Magnetic Roll 5~9 rolls
 Temperature control range 0-400(adjustable)
 Available sheet 3*7, 3*8, 3*9, 4*7, 4*8, 4*9, 5*5 or other format in your order
 Temperature control precision 2
 Available material

 Film sheet: thickness0.25~0.8mm, Max.width: 580mm

 Coil filmthickness0.04-0.2mm

 inner diameter:3 inches; outer diameter less than 20 inches

 Laying precision 0.15mm
 Overall dimension L2850*W1200*H1800mm
 Weight Approx.1500Kg
 Operator 1 person
