SMBPM-14 RFID Smart Card Data DOD Personalized Machine

  • Product Details

SMBPM-14 RFID Smart Card Data DOD Personalized Machine is used to read RFID contactless card data and convert data for DOD UV printing, also do the chip data personalization from database, has printing verification function and chip data personalized verification function.
It's multifunctional card data personalization machine for loyalty card, banking card, scratch card, ID card, contactless smart card, magnetic card, driver license card and other cards production.

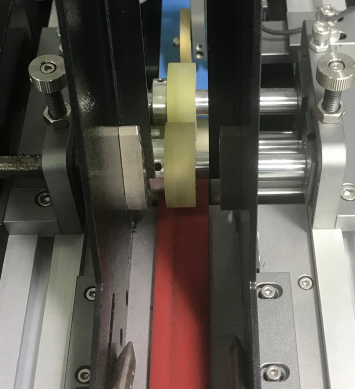

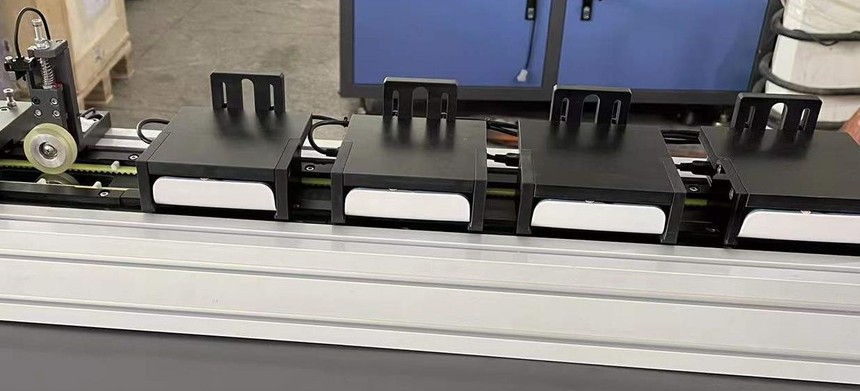

   1622542371228448.png  1650288661102304.jpg

Size Adjustable Cards Feeder    Double Cards Detection     4stations RFID card personalization

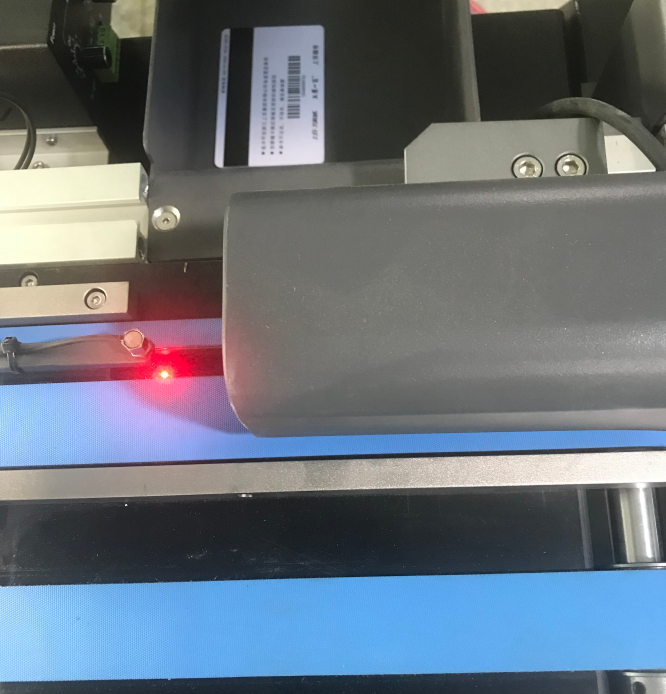

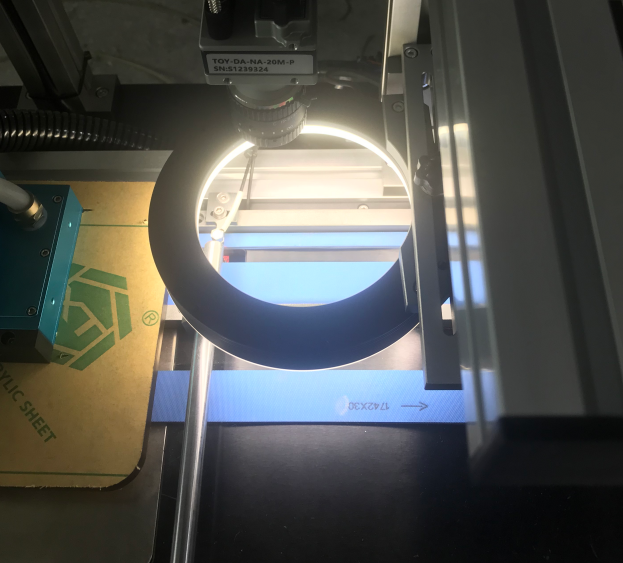

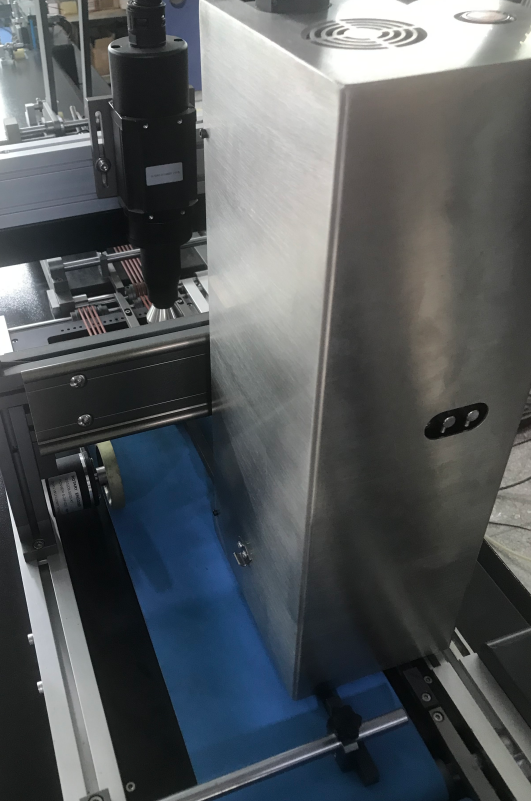

   1622541968294318.png       1622542048568736.png       1622542767762655.png

     DOD UV Print               OCR Verification                            Bad Card Rejection

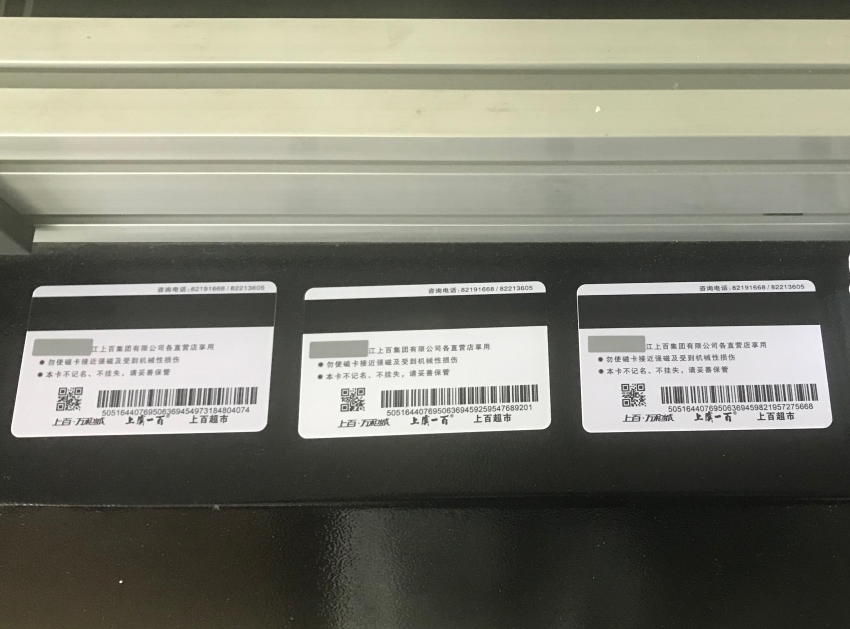

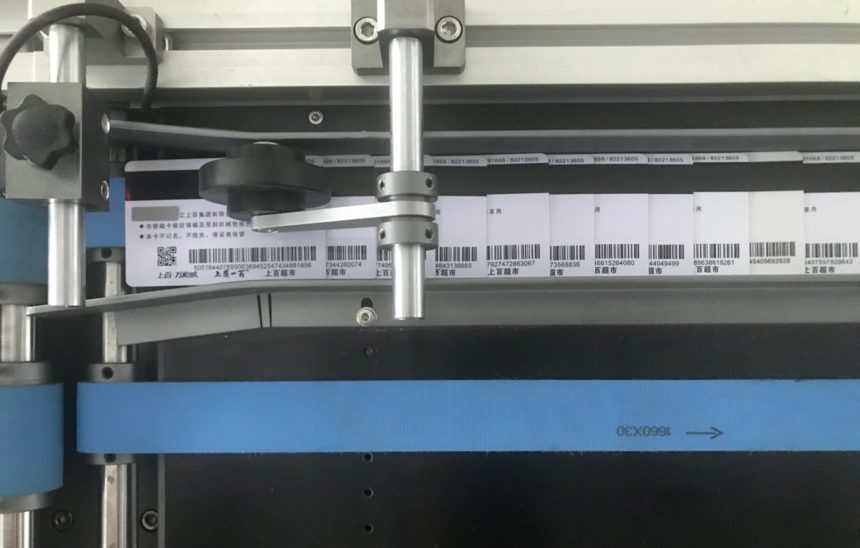

   1622542954417559.png  1622543155835877.png

          Good Cards Collection                                Good Cards

Functions:
1. Read smart card UID and save UID as data for for DOD UV printing, printing data can be same UID number or convert UID into barcode.
2. Write data from database into different sectors for smart card data personalizatoin.
3. DOD UV Print for banking card, ID card, SIM card, loyalty card, RFID card, E-Passport, Hotel Card and so on. Printing data can be database or read data from chip & magstripe, display barcode or QR code or numbers or website or other characters.
4. Automatic check the printed data if the same sequence in database and check if correct printing by OCR verification.
5. Automatic check personalized chip card if correct data in different blocks.
6. Automatic reject the bad card into a separate stacker and save the bad card data separately, finally collect good cards into another conveyor.


Control modeIndustrial computer and UPS Service
Material size

CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order)

Suitable MaterialPlastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass...
Printing Width36mm, 54mm, 72mm, 144mm
Compressed air6 KG/cm2
Power2.5 - 8KW depends different configurations of machine
Voltage220V   50/60Hz


Capacity

if only printing, maximum 13000 cards per hour, depends different configurations of machine

if contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour

 Dimension

L5500mm*W700mm*H1780mm

Weight800KGS
Versionsrevised and develpped 18 times
