SMCLM-6B RFID Smart Card Lamination Machine

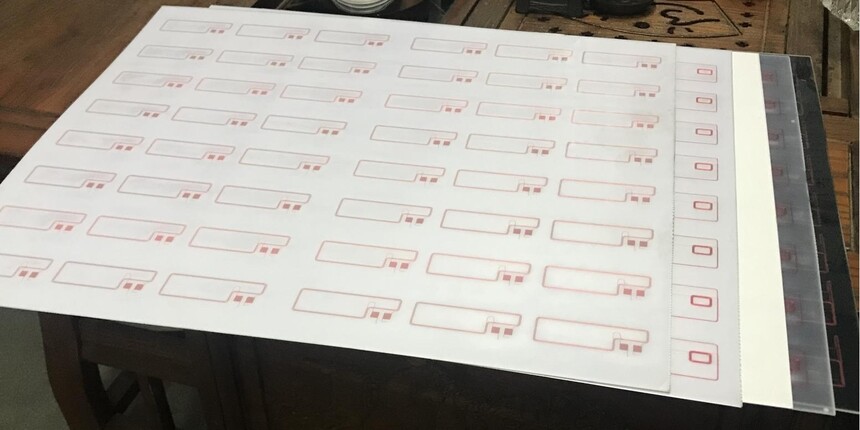

SMCLM-6B RFID Smart Card Lamination Machine is one of our professional lamination machine can laminate plastic sheet for making pre-inlay, dual interface inlay, smart card, ID card, driver license card, bank card, loyalty card and so on.

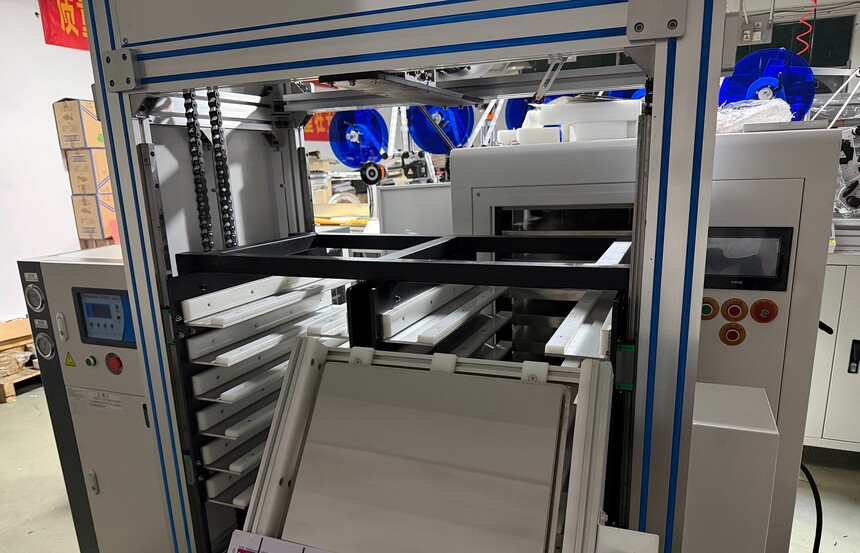

Configurations: 6 daylights for lamination, hot lamination and then cold lamination(no need to take trays out till finish process). Tilting worktable and two towers loader with rail at front of laminator can save effort and time.

Can laminate transparent materials, white materials, black materials, embedded antenna materials and so on.

Speciality:

SMCLM-6B RFID card laminator is low wastage rate, easy to operate effectively.As the professional plastic laminator machine it also can satisfy the PVC card company and PVC
card factory enough to produce good quality certificate cards, banking cards, transportation cards ,insurance card and so on. It with simple
man-machine screen, easy to operate, with international standard oil cylinder, balance pressure, low noise and no vibration. Heating lamination
plates are made of professional laminating plate, keep it never distortion. It is suitable for laminating and processing all kinds of plastic cards
(special for contactless IC card laminating and processing). Precision producing, whole sealed and beautiful outlook, our Laminator is the best
choice for the standard workshop.

Technical details:

Lamination Area: 2*5, 3*8, 4*8, 5*5, 6*8 or other formats

Lamination daylight: 6daylights or by your order

Pressure Method: oil hydraulic pressure system

Pressure Range: 0-12MPa

Temperature: 90-220 degrees for lamination with PVC, PETG, Teslin, Polycarbonate

Heating Method: electric power and installed temperature module

Working Efficiency: around 30mins

Input Voltage: 380V    50/60Hz

Power: 21KW with loader and chiller

Power consumption:  3-5KW per hour

Dimension:    Main laminator 1160mm*960mm*1850mm        Loader with rail 1350mm*1450mm*1850mm

Weight: 950KGS
