SMDIM-6 Dual-Interface Card Inlay Edge Cutting Machine

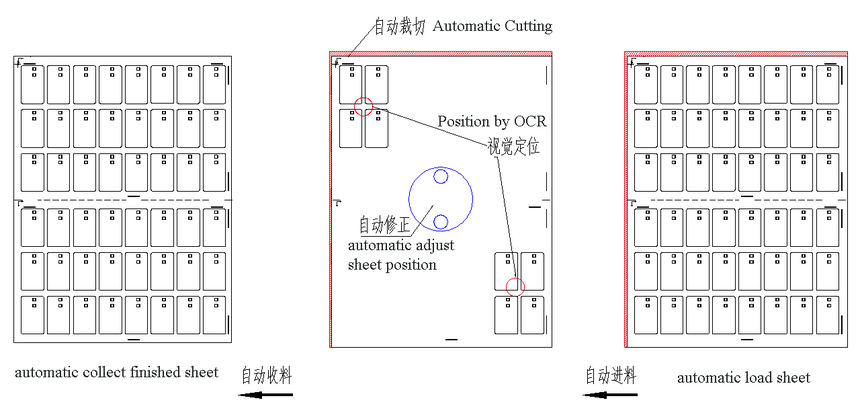

SMDIM-SH6 Dual-Interface Card Inlay Edge Cutting Machine is mainly used for automatic cutting inlay right-angle sides, it's automatic operation of the equipment, the use of visual positioning, three axis servo automatic correction cutting. High cutting precision, high speed, high degree of automation, can greatly improve the production efficiency. Other similar cutting functions can also be customized according to customer requirements. Inlay right-angle automatic cutting. Automatic feeding, automatic correction cutting, automatic closed material automatic operation. Double camera visual identification inlay position, accurate, efficient. PLC+ touch screen control, high stability, simple operation.

a1. The machine adopts PLC program automatic control, large screen friendly man-machine interface operation, convenient and adjustable parameters, simple operation of the machine.

2. Double camera visual identification technology is adopted to accurately identify the position of the inlay during production, and the identification system can automatically calculate the position deviation. The double camera recognition system has a repeatable recognition accuracy up to 0.03mm.

3. The correction function adopts three-axis servomotor action, and the three-axis servomotor correction system automatically corrects the error according to the visual identification. The servomotor has high running accuracy and good stability.

4. CNC machining is adopted for punching and cutting dies to ensure right -angle of the die , and high cutting precision.

5. The equipment adopts automatic feeding and receiving methods, and the height of the feeding box and receiving box is up to 280mm.Automatic feeding and receiving functions realize full automatic operation of the equipment.
