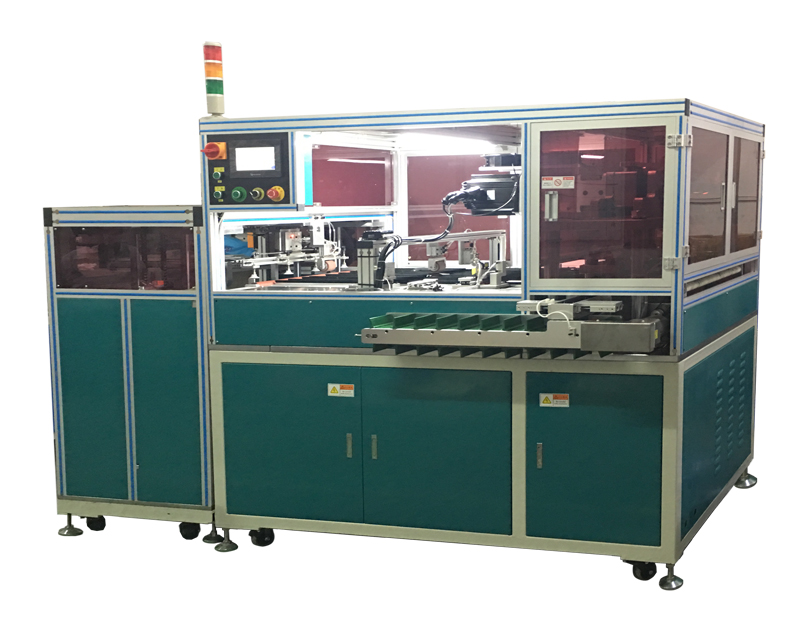

SMCPM-A3D Full Automatic Poker Playing Card Cutting Machine

  • Details

SMCPM-A3D Full Automatic Poker Playing Card Cutting Machine is autoamtic load paper or plastic sheet, automatic adjust sheet position, automatic sheet cutting into cards, automatic collect cards as packs. We can offer usual 5*11 format 55 poker cards per pack, 6*9 format 54 poker cards per pack, 7*8 format 56 poker cards per pack, or other special size of card cutting and collecting for packing.

SMCPM-A3D Full Automatic.jpg

             4 * 13  format                                              5 * 11  format                                              6*6 format

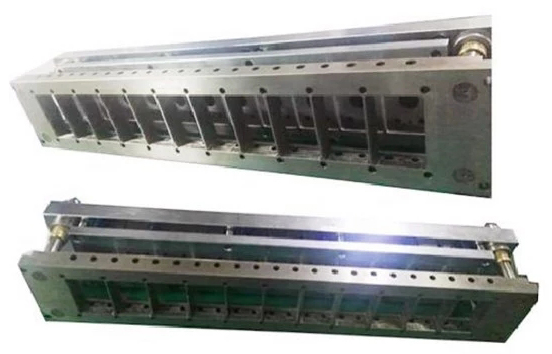

     6*9  format                                                     7*8  format                              Maximum 11 dies mold for 11*5 format 55 poker cards

4*13,  6*6, 6*8,  6*11, 11*5 different formats and can be made by your order. Printed sheet cutting and then collate the punched cards (in order/ in number) to individual full deck of playing card automatically, operator doesn’t need to separate and collate the card again, in order to increase the productivity, save labor cost, reduce scrape and scrap. Most of big playing card manufacturer are already using this machine.

1.Playing cards can be collated (in order/ in number) to a full set automatically.
2.Punching and collating automatically, punch 4 round corners or 4 right angle at the same time.
3. Incorporating material sending, card punching, card collating, card grouping and scrap collecting.
4. It adopts PLC program to control the machine automatically, so the machine is automatically operated and inspected. It will automatically stop and sound out alarms if there is a case of errors.
5. It adopts touching screen user-friendly English and Chinese interface, simple and convenient.
6. It adopts photographic-electric positioning, which ensure most precise punching.

 Punching Materials PC, PVC, ABS, PET, PETG, Paper, Teslin or other plastic materials......
 Punching Thickness 0.1mm-1.2mm
 Punching Format

 4*13 playing card 52cards format

 5*11 and 11*5 poker 55cards format, 6*9 poker 54cards format,

 7*8 poker 56cards format
 Punching Sheet A3+, A2 or other special size
 Card Stacker in your order
 Control Method PLC, Touch Screen, Servo Motor system
 Working Efficiency 20000-44000pcs card per hour depends format
 Collection System in your order
 Voltage Input 380V     50/60Hz
 Power 5.5KW
 Packing Size 2500mm*1240mm*1750mm
 Net/Gross Weight 1150KGS/1230KGS
