SMSBM-4 Full Automatic Sheet Collating Machine

  • Details

SMSBM-4 Full Automatic Sheet Collating Machine is full automatic machine to load the overlay and printed sheet one by one till per set, then ultrasonic bonding the sheets.

 1577088852841834.jpg 1577088969633235.jpg

It's used for preparation process before lamination so that ensure lamination quality. This machine adopts electric heating, bonding pressure and bonding time are adjustable, and spot is smooth. The spot bonding head is movable in the full range of guide. It is possible to adopt either edge position or pin-hole position according to the requirement of user.

Process for lamination:
1. overlay sheet + printed sheet + printed sheet + overlay sheet
2. overlay sheet + printed sheet + RFID inlay sheet + printed sheet + overlay sheet
3. printed sheet + RFID inlay sheet + printed sheet


 Bonding Material PVC, PET, PETG, ABS, Telin or other mixed plastic materials
 Bonding Size A4, A3, A3+ or other size in your order

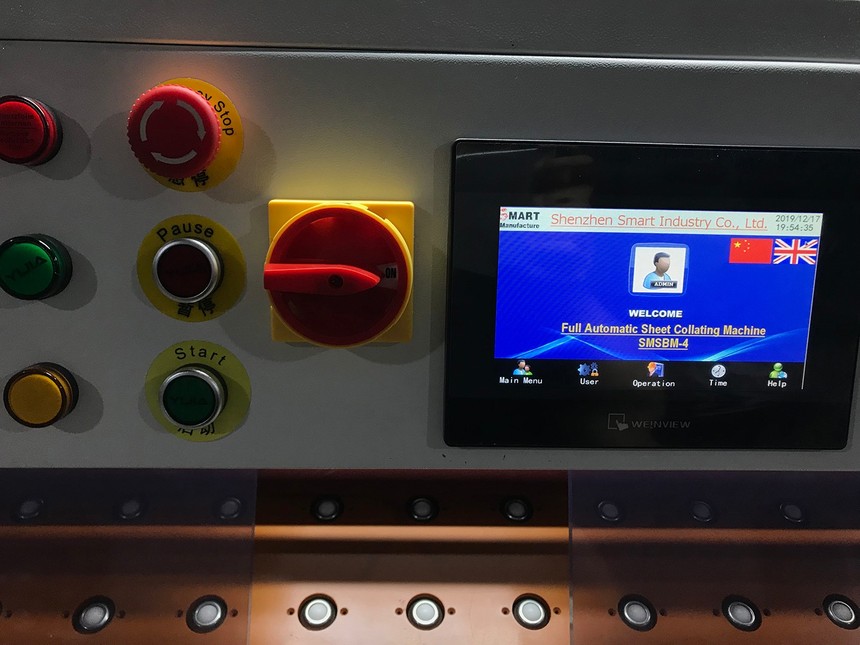

 Control Method PLC, Touch Screen, Servo System
 Air Supply 0.6MPa       80L/minute
 Working Method ultrasonic bonding
 Voltage Input 380V     50/60Hz
 Power 2.5-5KW
 Working Efficiency maximum 1500 big sheets per hour
 Packing Size 2650mm*1150mm*1750mm
 Net/Gross Weight 800KGS/680KGS
