SMBPM-11 DOD Print Data Personalization Machine is used read contactless card data and convert data for magnetic card encoding, also use the variable barcode data from database or from smart card for DOD UV print and inspect printed data if correct by OCR module and apply label on product. It's multifunctional card data personalization machine for loyalty card, banking card, scratch card, ID card, contactless smart card, magnetic card, driver license card and other cards production.

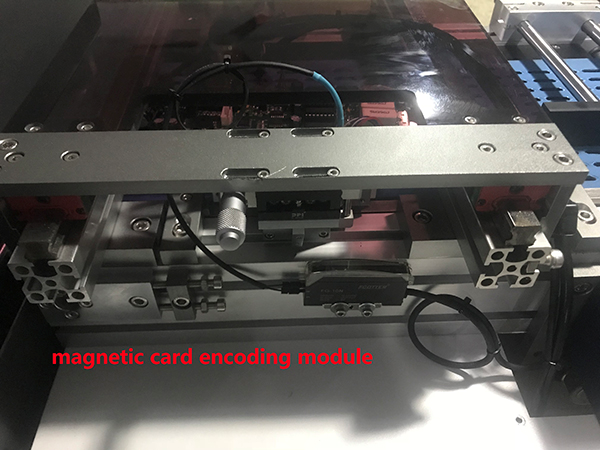

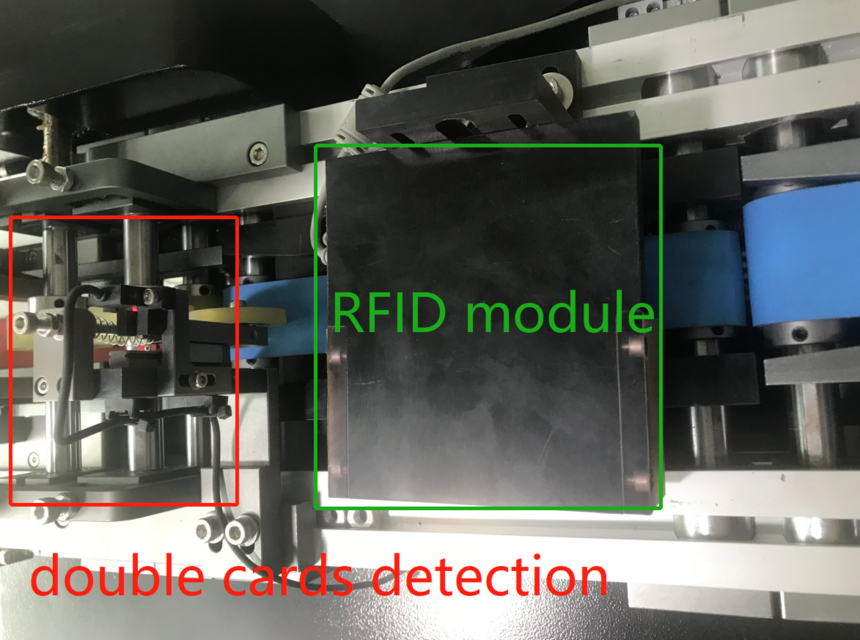

Size Adjustable Cards Feeder Double Cards Detection RFID card personalization Magnetic Card Encoding

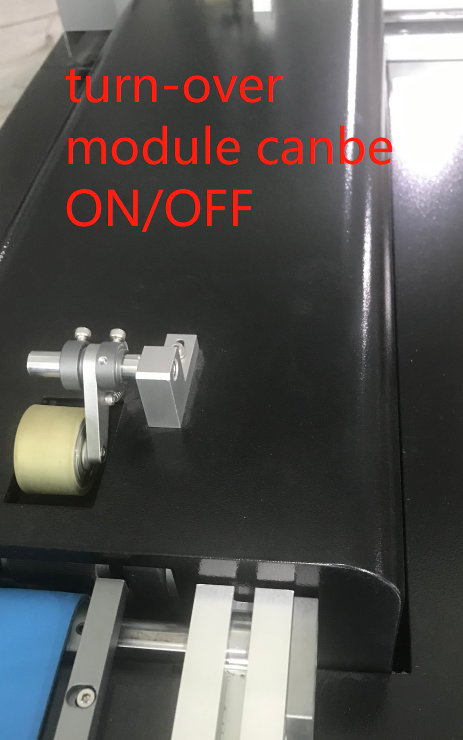

Flipper Plasma Treatment DOD UV Print OCR Verification Bad Card Rejection
Labeling(simple label & scratch label) Good Cards Collection Good Cards
Functions:
1. Read smart card UID and save UID as data for magnetic card encoding or for DOD UV printing, printing data can be same UID number or convert UID into barcode.
2. Write data from database into different sectors for smart card data personalizatoin.
3. DOD UV Print for banking card, ID card, SIM card, loyalty card, RFID card, E-Passport, Hotel Card and so on. Printing data can be database or read data from chip & magstripe, display barcode or QR code or numbers or website or other characters.
4. Automatic check the printed data if the same sequence in database and check if correct printing by OCR verification.
5. Apply the scratch label or simple label on all types card.
6. Automatic reject the bad card into a separate stacker and save the bad card data separately, finally collect good cards into another conveyor.
| Control mode | Industrial computer and UPS Service |
| Material size | CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order) |
| Suitable Material | Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass... |
| Printing Width | 36mm, 54mm, 72mm, 144mm |
| Compressed air | 6 KG/cm2 |
| Power | 2.5 - 8KW depends different configurations of machine |
| Voltage | 220V 50/60Hz |
Capacity | if only printing, maximum 13000 cards per hour, depends different configurations of machine if contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour |
Dimension | L4000*W700*H1780mm |
| Weight | 900KGS |
| Versions | revised and develpped 18 times |
