Enameled Copper Wire

  • Product Details

Application:lacquered copper wire embedding for contactless smart card and contactless inlay and dual-interface card.

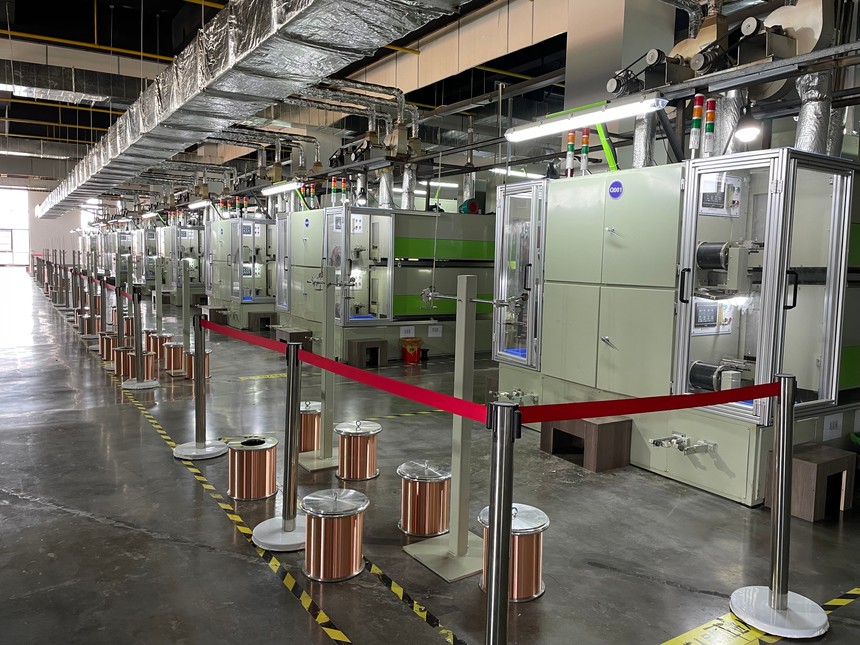

Enameled copper wire is one of main varieties of winding wire, consisted of conductor and insulation coating. After annealing to soft enough, several enamelling and baking steps, the bare wire become the enameled copper wire.

Package: vacuum wrapping and export wooden box

Conductor Diameter:0.100±0.002(mm)

Breakdown Voltage: ≥0.95(KV)

Electrical Resistance: 2.092±3%(Ω/m)

Solder Temperature: 390±5℃

Overall diameter: 0.122±0.003(mm)

Self-bonding Method: Hot

Insulated Layer: 0.016~0.019(mm)

Bonding Temperature: Coilsurface 140~160℃

Self-bonding Layer: 0.003~0.006(mm)

Bonding Strength: ≥0.08(N)

Elongation: ≥16%

Thermal Class: F(155℃)

Brine Pinhole: 8(pcs/sixmeters)

Shelf Life: One Year (20℃)
