SMBPM-16 Double Sides DOD Personzliation Print Machine

  • Product Details

SMBPM-16 Double Sides Banking Card DOD Personalized Machine is used for banking magnetic card encoding and double sides DOD UV printing.

Magstripe encoding data and DOD printing data can be fixed data or from database.

Automatic turn card side for double sides printing and automatic check the variable printed data and compare data with database.

It's multifunctional card data personalization machine for loyalty card, banking card, scratch card, ID card, contactless smart card, magnetic card, driver license card and other cards production.

   1622542371228448.png   1650289193695215.jpg

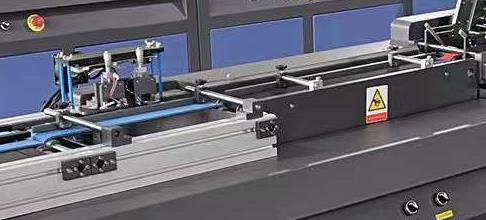

       Cards Feeder                   Magstripe Encoding                   Turn-Over

    1622541968294318.png       1622542048568736.png       1622542767762655.png

     DOD UV Print         OCR Verification          Bad Card Rejection

1622542853272197.png   1622542954417559.png  1622543155835877.png

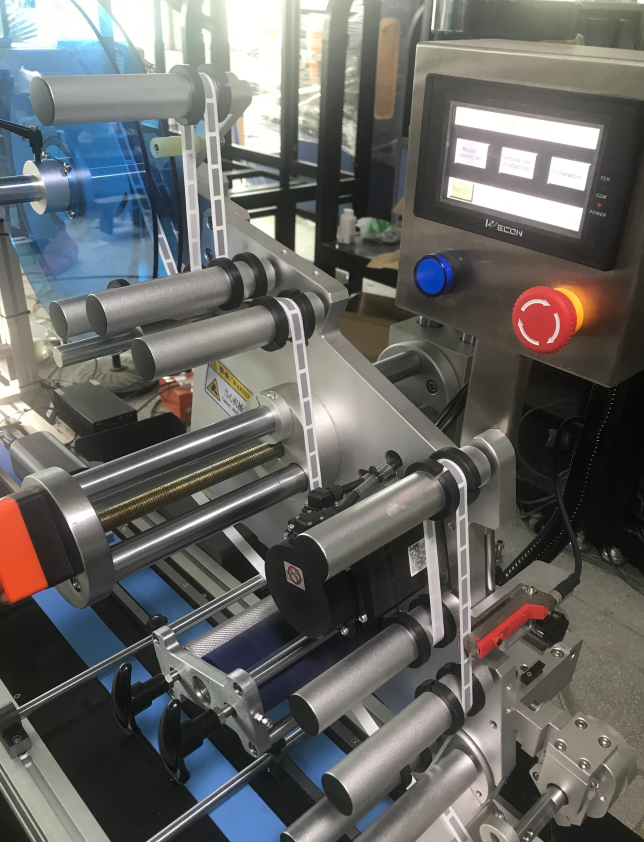

Labeling(simple label & scratch label)           Good Cards Collection             Good Cards

Functions:
1. Hi-Co and Lo-Co Magnetic Card Encoding for 1/2/3 tracks.
2. Data print by DOD UV for banking card, ID card, SIM card, loyalty card, RFID card, E-Passport, Hotel Card and so on. Printing data can be from database or fixed data, display barcode or QR code or numbers or website or other characters.
3. Automatic check the printed data if the same sequence in database and check if correct printing by OCR verification.
4. Automatic turn-over the card for another side DOD personalization.
5. Automatic reject the bad card into a separate stacker and save the bad card data separately, finally collect good cards into another conveyor.


Control modeIndustrial computer and UPS Service
Material size

CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order)

Suitable MaterialPlastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass...
Printing Width36mm, 54mm, 72mm, 144mm
Compressed air6 KG/cm2
Power2.5 - 8KW depends different configurations of machine
Voltage220V   50/60Hz


Capacity

if only printing, maximum 13000 cards per hour, depends different configurations of machine

if contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour

 Dimension

L6500mm*W700mm*H1780mm

Weight1200KGS
Versionsrevised and develpped 20 times
