SMBPM-15 Non-Standard Card DOD Machine is used to read RFID contactless card data and convert data for magnetic stripe encoidng, for DOD UV printing and laser printing, also do the chip data personalization from database, has printing verification function and chip data personalized verification function and apply labeling on card.
It's multifunctional card data personalization machine for loyalty card, banking card, scratch card, ID card, contactless smart card, magnetic card, driver license card and other cards production.
Configurations:
Cards Feeder(adjustable maximum 210mm) + Double Cards Detection + RFID Smart Card Personalization + Loyalty Magnetic Card Encoding + Turn-Over + DOD UV Print + OCR Verification + Laser Print + Lableing + OCR Verification + Bad Card Rejection + Good Cards Collection

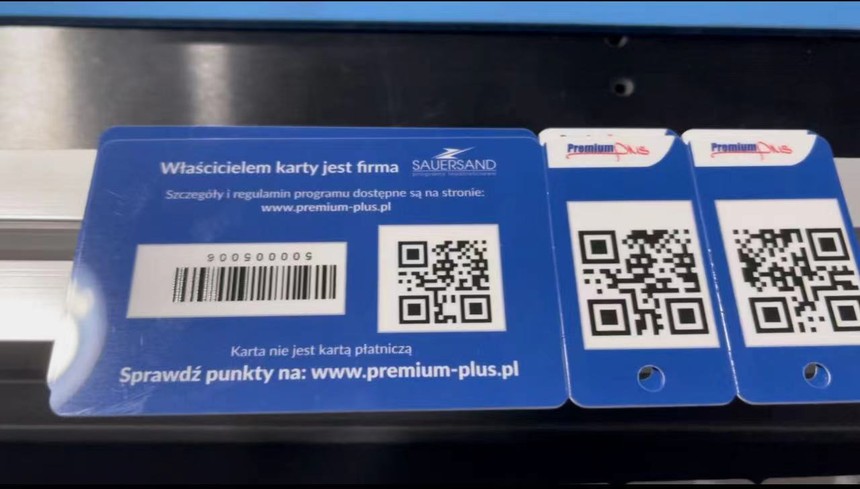

54mm*143mm family cards 1 + 2 key rings 133mm*100mm gift card
Functions:
1. Read smart card UID and save UID as data for for DOD UV printing or Laser printing, printing data can be same UID number or convert UID into barcode.
2. Write data from database into different sectors for smart card data personalizatoin.
3. Hi-Co and Lo-Co magnetic card encoding for 1/2/3 tracks, data can be from database or from smart card.
4. DOD UV Print or Laser Print for banking card, ID card, SIM card, loyalty card, RFID card, E-Passport, Hotel Card and so on. Printing data can be database or read data from chip & magstripe, display barcode or QR code or numbers or website or other characters.
5. Automatic check the printed data if the same sequence in database and check if correct printing by OCR verification.
6. Automatic apply label on product.
6. Automatic reject the bad card into a separate stacker and save the bad card data separately, finally collect good cards into another conveyor.
| Control mode | Industrial computer and UPS Service |
| Material size | CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order) |
| Suitable Material | Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass... |
| Printing Width | 36mm, 54mm, 72mm, 144mm |
| Compressed air | 6 KG/cm2 |
| Power | 2.5 - 8KW depends different configurations of machine |
| Voltage | 220V 50/60Hz |
Capacity | if only printing, maximum 13000 cards per hour, depends different configurations of machine if contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour |
Dimension | L5800mm*W800mm*H1780mm |
| Weight | 950KGS |
| Versions | revised and develpped 19 times |
