SMBPM-2 High Speed DOD UV Inkjet Printing Machine with card personalization

Collect
  • DETAILS



It's using in China, India, Ukraine, Russia, Turkey, Australia, Serbia, Mexico for making credit card and driver licence. We can offer machine for single color or multi color(maximum 8 color) printing by your request.
SMBPM-2 High Speed DOD UV Inkjet Printing Machine with card personalization can print one dimensional code, two-dimension barcode,  personalization numbers, Chinese words, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, English words , various patterns and any other languages . It can change the data into barcode mode for  UV printing on card body.
For making ID card, bank card, credit card, bank card, Master Card, VISA card, loyalty card, driver licence, hang card, tag card, transportation card, scratch card, recharge card, bus ticket card, metro ticket card, train ticket card, VIP card and so on.


SMBPM-2 High Speed DOD UV Inkjet Printing Machine with card personalization, it's automatic feed cards one by one for plasma coating surface, then DOD UV printing and LED dry the ink, finally collect cards.
1.Wecan add OCR module with reject function on machine, used to check printing quality.

2.We can add contactless smart card personalization at the begining of our SMBPM-2 DOD UV Printing Machine:
It's used to read UID from card, and print UID number or exchange UID number into any kinds of barcode (or QR code) on card.
It's used to write information from database into chip, all sections can be encoded with different information by request from machine's software or database.

3. We can add contact chip card personalization at the begining of our SMBPM-1 DOD UV Printing Machine: It's used to apply data for contact chip.

4. We can add magnetic card encoding module at the begining of our SMBPM-1 DOD UV Printing Machine, used to encode 1 or 2 or 3 tracks information into magnetic stripe. After that, machine also can do DOD UV printing the encoded information on card, 1-3 tracks by request. Or exchange information into barcode and print on card by request.

5. We can add scratch label module on our SMBPM-1 DOD UV Printing Machine, also can add OCR inspection after label.

6. We can add another unit DOD UV Printing function for double sides printing on our SMBPM-1.

Control modeIndustrial computer
Material size

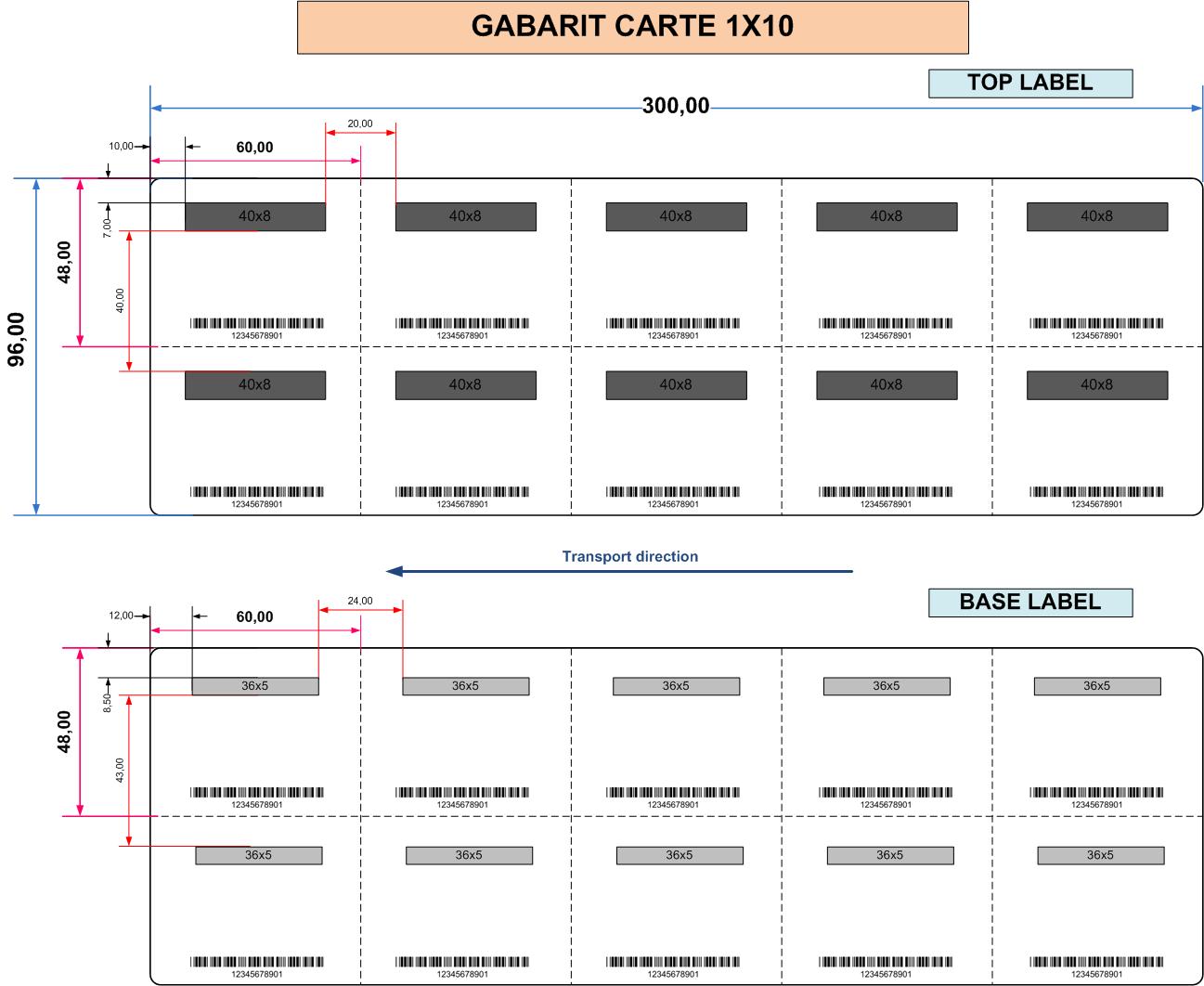

CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order)

Suitable MaterialPlastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass...
Printing Width36mm, 72mm, 144mm
Compressed air6 KG/cm2
Power2.5 - 8KW depends different configurations of machine
Voltage220-230V 50/60Hz


Capacity

if only printing, maximum 13000 cards per hour, depends different configurations of machine

if install contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour



Dimension

L1600×W700×H1900 mm if Just DOD UV Printing module

If fix magnetic card encoding system or smart card personalization system or scratch card label system, more longer

full configurations of machine will be 11 meters

Weight600-1800KGS depends different configurations of machine
Versionsrevised and develpped 8 times

So, we can offer you different configurations as under:

Just for one side DOD UV Printing
Card Feeder + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker + Collect Good card


One side DOD UV Printing and scratch label
Card Feeder + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker +  scratch label + OCR inspection + Reject card stacker + Collect Good card

one side DOD UV Printing and smart card personalization
Card Feeder + Contactless Smart Card Personalization + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker + Collect Good card

one side DOD UV Printing and magnetic card encoding
Card Feeder + Magnetic Card Encoding + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker + Collect Good card

onside DOD UV Printing and smart card personalization and magnetic card encoding
Card Feeder + Contactless Smart Card Personalization + Magnetic Card Encoding + Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker + Collect Good card

onside DOD UV Printing and smart card personalization and magnetic card encoding and scratch label
Card Feeder + Contactless Smart Card Personalization + Magnetic Card Encoding + Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection + Reject card stacker + scratch label +OCR inspection + Reject card stacker + Collect Good card

Double sides DOD UV Printing
Card Feeder + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Reject card stacker + Collect Good card

Double sides DOD UV Printing and smart card personalization
Card Feeder + Contactless Smart Card Personalization + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Reject card stacker + Collect Good card

Double sides DOD UV Printing and magneitc card encoding
Card Feeder + Magnetic Card Encoding + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Reject card stacker + Collect Good card

Double sides DOD UV Printing and smart card personalization and magneitc card encoding
Card Feeder + Contactless Smart Card Personalization + Magnetic Card Encoding + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Reject card stacker + Collect Good card

Double sides DOD UV Printing and smart card personalization and magnetic card encoding and scratch label
Card Feeder + Contactless Smart Card Personalization + Magnetic Card Encoding + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Turn Over Card Side + Plasma Coating + DOD UV Printing + LED Dry + OCR Inspection +  Reject card stacker + scratch label + OCR inspection + Reject card stacker + Collect Good card

If one card for smart card personalization failed, it won't do magnetic card encoding or DOD UV Printing , this card will be collected into reject card stacker directly.
If one card for magnetic stripe encoding failed, it won't do DOD UV Printing, this card will be collected into reject card stacker directly.
it one card after DOD UV Printing failed, it won't stick scratch label, this card will be collected into reject card stacker directly.


We have two choices for the failed cards:
1. when set software to do job, choose jump failed card, so if one card failed, next card won't instead of it.

The failed data will be seclected in program, later you can re-do the failed job.

2. setting of software, if one card failed, the next card will instead of it, so the data will be made for next card.
