It's using in China, India, Ukraine, Russia, Turkey, Australia and Serbia for making credit card and driver licence. We can offer machine for single color or multi color(maximum 8 color) printing by your request.
SMBPM-4 Full Automatic DOD UV Printing Machine can print one dimensional code, two-dimension barcode, personalization numbers, Chinese words, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, English words ,various patterns and any other languages . It can change the data into barcode mode for UV printing on card body.
For making ID card, bank card, credit card, bank card, Master Card, VISA card, loyalty card, driver licence, hang card, tag card, transportation card, scratch card, recharge card, bus ticket card, metro ticket card, train ticket card, VIP card and so on.

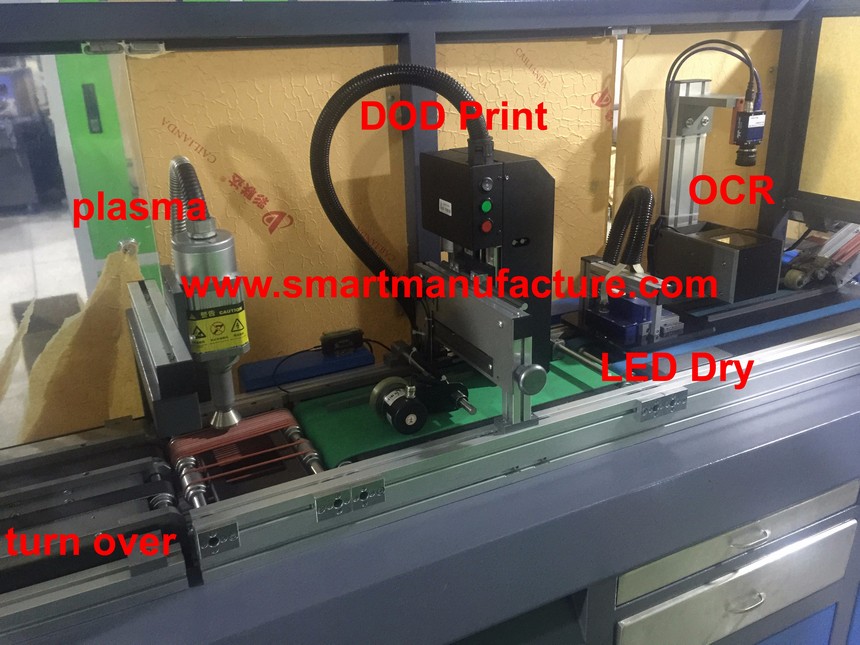

SMBPM-4 DOD UV Printing Machine with RFID Smart Card Persoanlization, it's automatic feed cards one by one for RFID Smart Card Persoanlization, then transfer cards for plasma coating surface, then DOD UV printing and LED dry the ink, if any matter of RFID Smart Card Personalization, automatic reject this failed card to rejection card stacker, other good cards will be collected into good card stacker.
| Control mode | Industrial computer |
| Material size | CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order) |
| Suitable Material | Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass... |
| Printing Width | 36mm, 72mm, 144mm |
| Compressed air | 6 KG/cm2 |
| Power | 2.5 - 8KW depends different configurations of machine |
| Voltage | 220-230V 50/60Hz |
Capacity | if only printing, maximum 13000 cards per hour, depends different configurations of machine if install contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-8000 cards per hour |
Dimension | L1600×W700×H1900 mm if Just DOD UV Printing module If fix magnetic card encoding system or smart card personalization system or scratch card label system, more longer full configurations of machine will be 11 meters |
| Weight | 600-1800KGS depends different configurations of machine |
| Versions | revised and develpped 8 times |
1.We can add OCR module with reject function on machine, used to check printing quality.
2.It's used to read UID from card, and print UID number or exchange UID number into any kinds of barcode (or QR code) on card.
It's used to write information from database into chip, all sections can be encoded with different information by request from machine's software or database.
3. We can add contact chip card personalization at the beginning of our SMBPM-4 DOD UV Printing Machine: It's used to apply data for contact chip.
4. We can add magnetic card encoding module at the beginning of our SMBPM-4 DOD UV Printing Machine, used to encode 1 or 2 or 3 tracks information into magnetic stripe.
After that, machine also can do DOD UV printing the encoded information on card, 1-3 tracks by request. Or exchange information into barcode and print on card by request.
5. We can add scratch label module on our SMBPM-4 DOD UV Printing Machine, also can add OCR inspection after label.
6. We can add another unit DOD UV Printing function for double sides printing on our SMBPM-4.
We have two choices for the failed cards:
1. when set software to do job, choose jump failed card, so if one card failed, next card won't instead of it. The failed data will be seclected in program, later you can re-do the failed job.
2. setting of software, if one card failed, the next card will instead of it, so the data will be made for next card.
