SMCPM-A3E 3*8 format Card Cutting Machine

  • Product Details

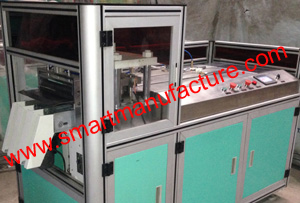

SMCPM-A3E Card Cutting Machine is used to punch A3 or A3+ plastic sheet and paper sheet into cards.
Our card die cutter is widely used for making ID card, VIP card, parking card, poker card, bookmark, bus card.
Automatic adjust sheet position by optical sensors, automatic feed sheet for punching cards. Servo motor and photographic sensor to make correct feeding position. Automatic collect punched cards into 3 card stackers and remove the waste sheet.


1.High sensitivity photoelectric sensors read the printing marks, automatic feeding sheets by servo motor, high precision.
2.electric style cutter for cutting motivity, dispense with hydraulic pressure, saving energy and cleanlily, stable motivity.
3.automatic adjust sheet position, automatic transfer the punched cards to card stcker, automatic collect the cards, easy to take out the cards.
4.touch screen frame for man operating, perfect parameter easy and conveniency.
5.automatic running PLC program controlling, when it make a mistake will alarm and stop operating.


Suitable Material     Plastic and Paper like Teslin, PVC, Polycarbonate, PET, PETG, ABS and so on
Punching Layout     3*7,   3*8,   3*9,   3*10,   3*11,    3*12
     4*8,   4*9,   4*10,  4*11,   4*12
     5*5,   5*11,  6*9,   7*8
Punching Die     3 dies, 4 dies, 5 dies, 6 dies, 7 dies
Control Method     PLC and Touch Screen and Servo Motor
Cylinder Travel     18mm
Air Source     0.6Mpa
Air Consumption     100L/minute
Power Source     380V or 220V       50/60Hz
Oil Tank     120L hydraulic oil
Work Efficiency     12000-18000pcs standard card per hour
Dimension     2170mm*1150mm*1550mm
Net/Gross Weight     850KGS/900KGS
