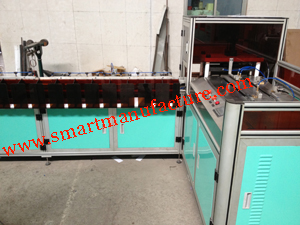

SMCPM-A3B Card Punching Machine with additional card stackers
Help you to save workers and increase your production 50% capacity.
This machine is the specialized equipment for handling a complex printed sheet that printed several different designs or combinations of card.
This machine provides cutting, collating and separating the different design cards automatically. Such as a sheet printed 2*8, 3*8, 6*8, 5*5 different card designs will be cut and separated to 8 or 16 or 25 card collating system automatically, operator doesn’t need to separate or group card again, in order to increase the production rate, save labor cost, reduce scrape and scrap.
| Punching Materials | PVC, ABS, PET, PEGT, Teslin, Paper, other plastic materials...... |
| Punching Thickness | 0.1-1.2mm |

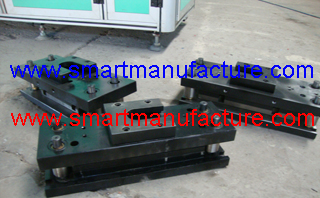

| Punching Format | 3*7, 3*8, 3*9, 3*10, 3*11, 3*12, 4*8, 4*9, 5*5, or other format
5*11 poker 55cards format, 6*9 poker 54cards format,
7*8 poker 56cards format |
| Voltage Input | 380V 50/60Hz |
| Air Supply | 0.6MPa 6KG/cm2 |
| Punching Efficiency | 8000-30000pcs card per hour |
| Control Method | PLC , Touch Screen, two units Servo Motor system |
| Card Separation | 2, 16, 24, 25, 32, 36 or in your order |

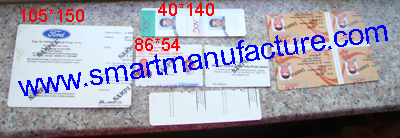

| Punching Size | standard card or special size in your order |
| Packing Size | 3000mm*1250mm*1550mm |
| Net/Gross Weight | 1400KGS/1500KGS |
