SMCPM-A3A Card Punching Machine is used to punch A3 plastic sheet and paper sheet into cards, make ID card, poker card, bookmark, photo.
Automatic adjust sheet position by photographic sensors, then automatic feed sheet for punching. Servo motor and photographic sensor to make correct feeding position. Automatic collect punched cards into card stacker and remove the waste sheet.

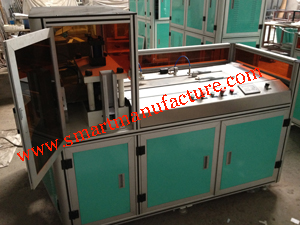

SMCPM-A3A Card Punching Machine
| Suitable Material | Plastic and Paper like Teslin, PVC, PC, PET, PETG, ABS and so on |
| Punching Layout | 3*7, 3*8, 3*9, 3*10, 3*11, 3*12, 4*8, 4*9, 5*5, or other format
5*11 poker 55cards format, 6*9 poker 54cards format,
7*8 poker 56cards format
|
| Punching Die | 3 dies, 4 dies, 5 dies, 6 dies, 7 dies |
| Control Method | PLC and Touch Screen and Servo Motor |
| Cylinder Travel | 18mm |
| Air Source | 0.6Mpa |
| Air Consumption | 100L/minute |
| Power Source | 380V or 220V 50/60Hz |
| Oil Tank | 120L hydraulic oil |
| Work Efficiency | 12000-18000pcs standard card per hour |
| Dimension | 2100mm*1150mm*1850mm |
| Net/Gross Weight | 850KGS/900KGS |
