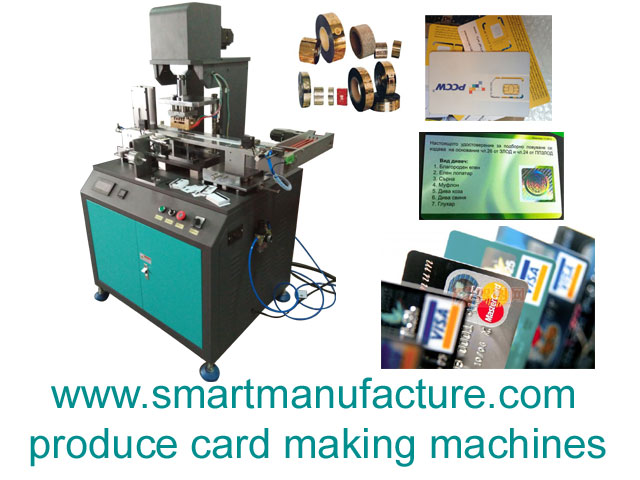

SMHSM-1 Hologram and Signature Stamping Machine


Professional machine to stamp hologram and signature on Master Card, VISA Card, Banking Card.

SMHSM-1 Full Automatic Hologram and Signature Stamping Machine is mainly used for stamping the anti-fake hologram and signature roll on credit card surface. It's PLC control with touch screen operation and servo driver. Cards are well protected without scratching occurring during card conveying. Specially it can stamp hologram and signture on paper, cardboard, PET, PETG, Teslin, ABS, BOPP, PPS, PPO, PA, PC, POM sheet.

 Suitable Material PVC, ABS, PET, PEGT, Paper, Teslin or other plastic materials
 Material Thickness 0.1mm-1.1mm
 Card Size 85.6mm*54mm
 Pressure maximum 1500KGS adjustable
 Air Supply 0.6MPa
 Heating Temperature less than 400 centigrade
 Working Efficiency 6000pcs card per hour
 Control Method PLC, Touch screen
 Voltage Input 380V    50/60Hz
 Power 2KW
 Precision of card position +/-   0.15mm
 Precision of foil position +/-   0.15mm
 Packing Size 1270mm*560mm*1420mm
 Net/Gross Weight 600KGS/650KGS
