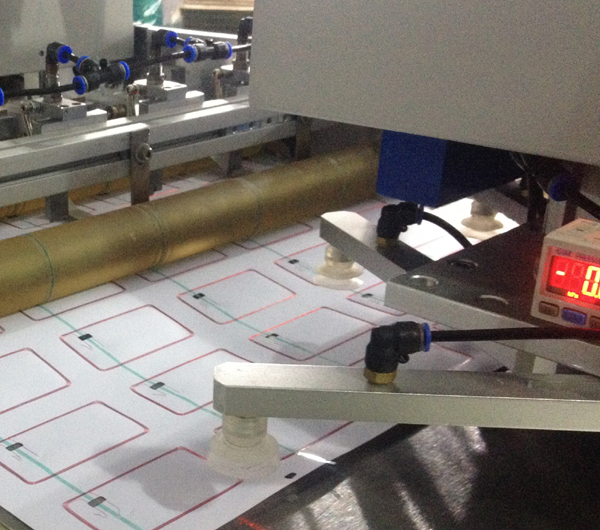

automatic load sheet for feeding, adhesive tape position can be adjusted by your formart

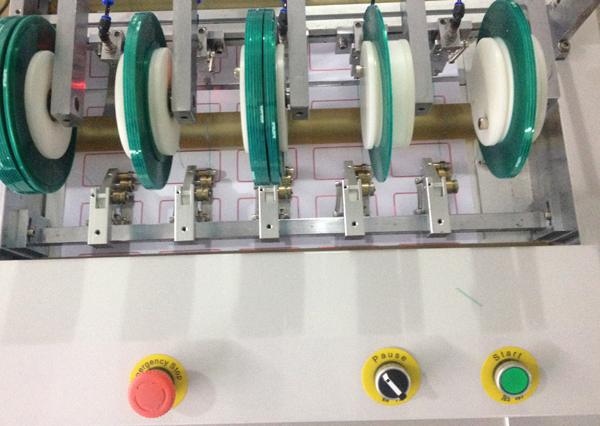

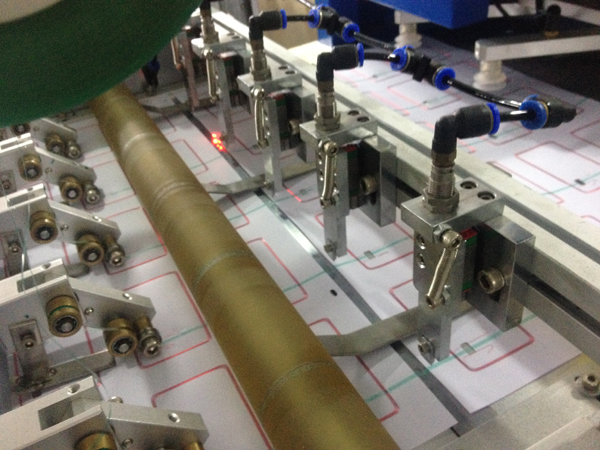

automatic flat transfer sheet for tape stick, optical sensor control for cutting

automatic collect finished sheets
SMNCM-5 Full Automatic Adhesive Tape Applying Machine is full automatic machine to stick adhesive tape on antenna sheet during produce smart card inlay sheets.
1. It's full automatic adhesive tape applying machine during making contactless smart card, instead of traditionary manual processing by hand to stick tape, it's running fast and save labour.
2. Machine is controlled by PLC, big friendly human-machine interface for operation, all the parameters can be adjusted by touch screen, easy for operation.
3. Machine can be worked by manual feed sheet and automatic feed sheet, when automatic feeding, optical sensors automatic control.
4. Running is controlled by servo system, fast speed and high stability.
5. Automatic cut tapes one sheet by one sheet, working with optical sensors, the cutting knife is made of professional mold material, useful for long time.
6. Automatic collect the finished sheets by vacuum manipulator.
7. We can produce machine for different formats by customer's order.
Control | PLC + Touch Screen + Servo System |
Layout | Adjustable by your sheet format |
Voltage | AC220V 50/60 Hz |
Power | 1KW |
Capacity | 20000cards per hour |
Size and Weight | L2000*W680*H1350mm 300KGS |
Number of Operator | 1 worker |
