SMBPM-5 DOD Printing with Personalized Card Issuing Machine

Collect
  • DETAILS

Updated Newest SMBPM-5 DOD UV Printing with Personalized Card Issuing Machine is produced according to customer requirements for special sizes of cards, it has some adjustments functions for CR80 and other sizes of cards printing and banking card encoding.

            It can print one dimensional code, two-dimension bar-code, personalization numbers,Chinese words, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, English words ,various patterns and any other languages . It can change the data into bar-code mode for UV printing on card body. For making ID card, bank card, credit card, bank card, Master Card, VISA card, loyalty card, driver licence, hang card, tag card, transportation card, scratch card, recharge card, bus ticket card, metro ticket card, train ticket card, VIP card and so on.



Adjustments:

1. Feeder: Width can be adjusted from tag card size to A4 size.

2. Optional Contactless Smart Card Personalization Module: read and write data for IC card and ID card.

3. Optional Contact Chip Card Personalization Module: read and write data for contact chip card.

4. Optional Verification(OCR): Enables inline OCR camera verification of personalization data elements. For improved reading performance, difficult backgrounds can be faded out. It's also used to read Printing data / Embossing Data / Bar-code Data and save the data as database, and this database will be used for encoding and printing.

5. Turn-Over/Flipping module: ON/OFF by production request. When turn-over/flipping module ON, the belt works for maximum double size of CR80 card. When turn-over module OFF, another unit belt works for maximum A4 size.

6. Optional Encoding Module: Work for CR80 and other sizes of card, easy to adjust the encoding module location on linear guideway, perfect for EMV Credit, Debit and Pre-Paid Banking Cards.

7. DOD UV printing module position can be adjusted by printing demand and printing system can be single or multi color.

8. Optional Verification(OCR): compare the printing data with database, collect good card and reject bad card.

9. Optional Turn-Over/Flipping module: ON/OFF by production request. When turn-over/flipping module ON, the belt works for maximum double size of CR80 card. When turn-over module OFF, another unit belt works for maximum A4 size.

10.Optional double sides DOD UV printing module position can be adjusted by printing demand and printing system can be single or multi color.

11. Optional Verification(OCR): compare the printing data with database, collect good card and reject bad card.

12. Optional Laser Printing: print number and bar-code and logo.

13. Optional Labeling: High-speed accurate wipe-on labeling with x-core function reduces roll changes and machine downtime. Works for scratch-off label and simple label.

14. Optional Verification(OCR): check label if damaged, if correct position.
15. Bad Card will be rejected into bad card stacker, good card will be collection to good card conveyer.


image2(03-31-20-17-01).JPG       dod sss.jpg

Smart Card Personalization Module                     DOD printing module and OCR Verification




 Encoding module can be adjusted position for different sizes of magnetic card

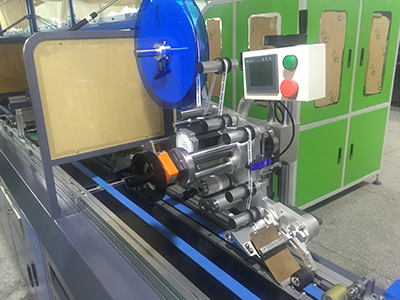

     labeling module sss.jpgTurnover/Flipping module works for different mode           Labeling Module for scratch off label and simple label


full configuration of DOD printing machine.jpg

Full configuration machine photo

smart card issuing+magnetic card encoding+double sides DOD printing+OCR verification+laser printing+labeling+rejection+good card collection



Control mode

Industrial computer

Material size

CR80 standard card or other special size like A4 sheeet (maximum width can be made by your order)

Suitable Material

Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass..

Printing Width

36mm, 72mm, 144mm

Compressed air

6 KG/cm2

Power

2.5 - 8KW depends different configurations of machine

Voltage

220-230V 50/60Hz



Capacity

if only printing, maximum 13000 cards per hour, depends different configurations of machine

if install contact chip card personalization or contactless smart card personalization or magnetic card encoding, 5000-9000 cards per hour



Dimension

L1600W700H1900 mm if Just DOD UV Printing module

If fix magnetic card encoding system or smart card personalization system or scratch card label system, more longer

full configurations of machine will be 11 meters

Weight

600-1800KGS depends different configurations of machine

Versions

revised and developed 9 times
